參數配置
|
Model 車型 Item 項目 |
Parameters 參數
|
||
|

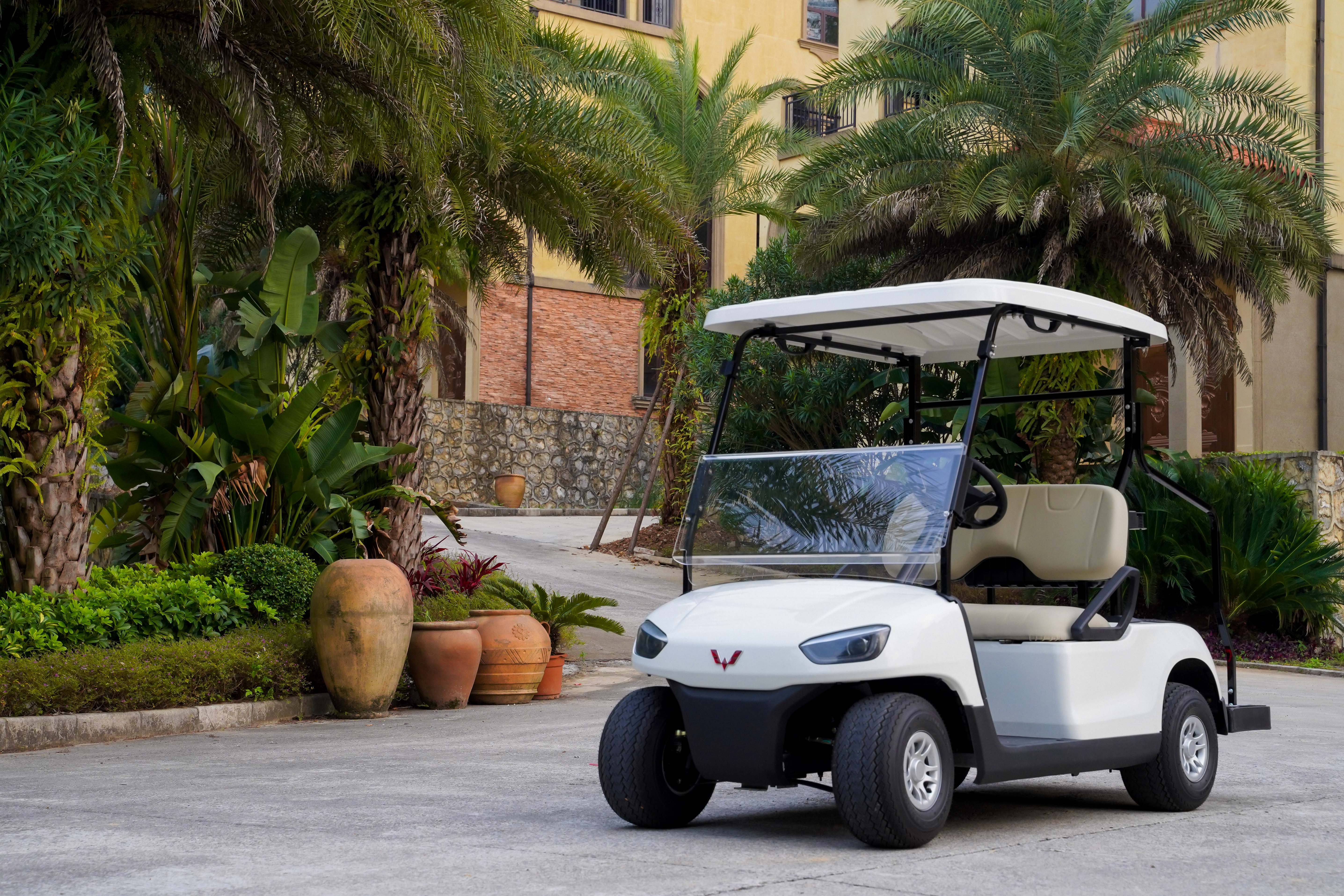

Picture 圖片 |
|
||
|
Model 型號 |
WLDT2A |
||
|
Voltage 電壓 |
48V |
||
|
Dimension Parameters 尺寸參數 |
Dimension(mm) 外形尺寸 |
Length 長 |
2690 |
|
|
|
Width 寬 |
1200 |
|
|
|
Height 高 |
1760 |
|
|
Wheelbase (mm) 軸距 |
1660 |
|
|
|
Track width 輪距 |
Front (mm)前輪 |
875 |
|
|
|
Rear(mm) 后輪 |
980 |
|
Mass parameters 質量參數 |
Kerb mass (kg) 整備質量 |
440 |
|
|
|
Gross mass (kg) 最大總質量 |
640 |
|
|
|
Axle load mass (kg) 軸載質量 |
Front axle 前軸 |
180 |
|
|
|
Rear axle 后軸 |
260 |
|
|
Passenger capacity 載客量 |
2 |
|
|
Through parameter 通過性參數 |
Min. turning diameter (m) 最小轉彎半徑 |
5.3 |
|
|
|
Min.ground clearance (full load) (mm) 最小離地間隙（滿載） (mm) |
91 |
|
|
|
Angle of approach (full load) (°) 接近角（滿載）(°) |
72.3 |
|
|
|
Departure Angle (full load) (°) 離去角（滿載）(°) |
35.1 |
|
|
|
Front suspension (mm) 前懸 (mm) |
238 |
|
|
|
Rear suspension (mm) 后懸 (mm) |
408 |
|
|
performance 性能 |
Max. speed (full load) (km/h) 滿載最高車速 (km/h) |
24 |
|
|
|
Max. climb %（°）最大爬坡度（°） |
30 (17.2) |
|
|
|
Cruising range(km) 續航里程 (km) |
80 |
|
|
Suspension frame 懸架 |
Front suspension 前懸架 |
Independent suspension, leaf spring with hydraulic shock absorber |
|
|
|
Rear suspension 后懸架 |
Non-Independent suspension, leaf spring with hydraulic shock absorber |
|
|
Tires 輪胎 |
Type of tire 輪胎類型 |
Pneumatic rubber tire 橡膠充氣輪胎 |
|
|
|
Tire specification 輪胎規格 |
18x8.5-8 |
|
|
Electric Motor 電動機 |
Brand 品牌 |
HEPU POWER 合普動力 |
|
|
|
Model 型號 |
HPQ3 - 60C |
|
|
|
Rated Current (A) 額定電流 (A) |
80 |
|
|
|
Rated Voltage (V) 額定電壓 (V) |
48 (AC) |
|
|
|
Rated Power (Kw) 額定功率 (Kw) |
3 |
|
|
|
Rated Torque (N.m) 額定扭矩 (N.m) |
9.6 |
|
|
|
Max. Torque (N.m) 最大扭矩 (N.m) |
80 |
|
|
|
Rated speed (r/min) 額定轉速 (r/min) |
3000 |
|
|
Motor Controller 電機控制器 |
Brand 品牌 |
ENPOWER |
|
|
|
Model 型號 |
MC 3528 |
|
|
|
Rated Voltage (V) 額定電壓 (V) |
48 |
|
|
|
Max. Current (A) 最大電流 (A) |
350 |
|
|
Battery 電池 |
Brand 品牌 |
LEOCH |
|
|
|
Model 型號 |
DT - 876 |
|
|
|
Voltage 電壓 (V) |
8V – 170Ah/20Hr |
|
|
Rear axle 后橋 |
Brand 品牌 |
Liuzhou Wuling |
|
|
u Suspension 懸掛 |
|||
|
Front swing arm assembly 前擺臂總成 |
S |
||
|
Front shock absorber 前減震器 |
S |
||
|
Front leaf spring assembly 前鋼板彈簧總成 |
S |
||
|
Front left and right knuckle with hub assembly 前左、右轉向節帶輪轂總成 |
S |
||
|
Rear axle assembly 后橋總成 |
S |
||
|
Rear axle leaf spring and bushing assembly 后橋鋼板彈簧及襯套總成 |
S |
||
|
Rear shock absorber assembly 后減振器總成 |
S |
||
|
u Braking 制動 |
|||
|
Mechanical rear drum brake 機械后鼓式制動器 |
S |
||
|
Hydraulic front disc rear drum brake 液壓前盤后鼓式制動器 |
- |
||
|
Parking brake 駐車制動 |
S |
||
|
Electronic brake 電子剎車 |
- |
||
|
Pedal unit 踏板組件 |
S |
||
|
u Interior and exterior decoration 內外飾 |
|||
|
Ball clamping position 卡球位 |
S |
||
|
Tee position (racking tool) Tee位（架球工具） |
S |
||
|
Water cup position 水杯位 |
S |
||
|
Ashtray 煙灰缸 |
O |
||
|
Sand pot fixed bandage 沙壺固定綁帶 |
S |
||
|
GPS interface and installation position GPS接口及安裝位置 |
S |
||
|
Instrument panel storage box 儀表板儲物盒 |
S |
||
|
Solar roof 太陽能車頂 |
O |
||
|
Ice bucket fixing mechanism 冰桶固定機構 |
O |
||
|
Rain cover 雨罩 |
O |
||
|
Standing mechanism and guardrail of tail caddie 尾部球童站立機構及護欄 |
O |
||
|
Installation hole of sand rake seat 沙耙座安裝孔 |
S |
||
|
Remarks: "s" standard configuration, "O" optional configuration, "-" not assembled 備注:”S”標配,”O”選配,”-”未裝配 |
|||
